Underground cable NYY-J

Buy at B2B prices

Apply for a B2B account for wholesale prices.
0% VAT for B2B customers from Belgium, Austria, and the Netherlands.

Subscribe to the newsletter to receive the latest discount codes.

Filter
Erdkabel Schwarz 50m
NYY-J 4x6 mm² underground cable by the metre
Technical data - NYY-J 4x6 mm² PVC power cable in accordance with DIN VDE 0276-603ConstructionConductor material: Copper (Cu), bareConductor class: Class 1 (solid)Number of cores: 4Core identification: according to VDE 0293 (blue, brown, black, grey)Nominal conductor cross-section: 6 mm²Outer diameter: approx. 15-16 mmSheath colour: blackStandards & propertiesStandard: DIN VDE 0276-603 / IEC 60502Flame retardancy: VDE 0482-332-1-2 / IEC 60332-1Temperature rangesPermissible operating temperature on the conductor: +70 °CPermissible external cable temperature (permanently installed): -40 °C to +70 °CPermissible external cable temperature (in motion): -5 °C to +70 °CElectrical dataRated voltage: U0/U = 0.6/1 kVTest voltage: 4 kVApplicationFixed installation in earth, outdoors, in water and in concrete (except vibrated, tamped or poured concrete) and indoors

€4.06*
Erdkabel NYY-J 5x6, 5x10, 5x1,5 mm² Schwarz 50m Ring

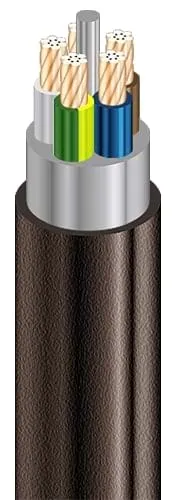

NYY-J 5x1.5 mm² underground cable 500m drum
- 500m drum underground cable NYY-J 5x1.5 PVC installation cable to DIN VDE 0250 Part 204- Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5- Core labelling: according to VDE 0293 - Conductor nominal cross-section: 1.5 mm² - Sheath colour: grey (RAL 7035) - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

Content: 500 Meter (€1.42* / 1 Meter)

€708.05*

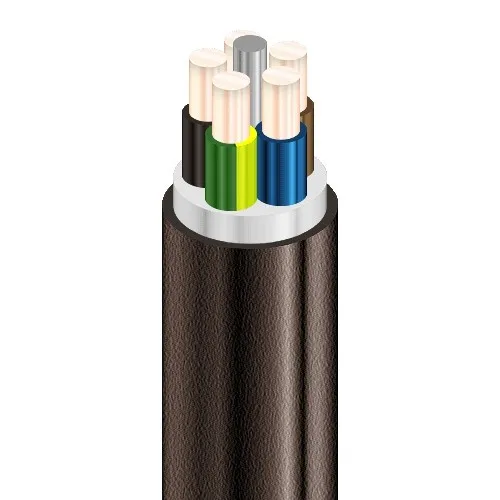

NYY-J 5x6 Erdkabel Schwarz
NYY-J 5x1.5 mm² underground cable by the metre
By the metre! No cutting costs! Exchanges or returns are not possible for customised products. Max. 500m!- NYY-J 5x1.5 PVC underground cable to DIN VDE 0250 Part 204 - Outer diameter: approx. 10 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 4 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€1.43*
Tip

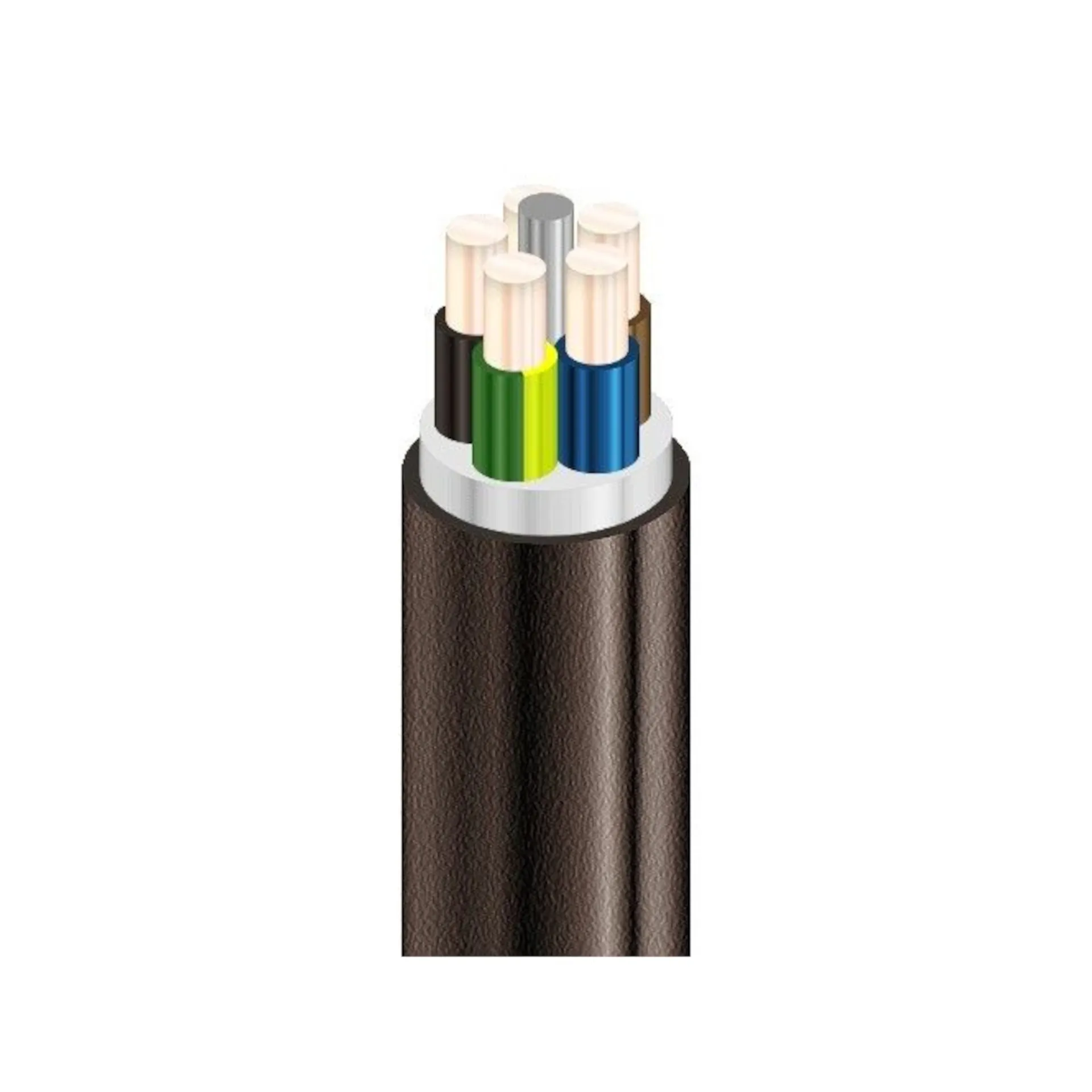

Erdkabel nyy 5x4
NYY-J 5x4 mm² underground cable by the metre
NYY-J 5x4 mm² underground cable by the metre to DIN VDE 0250 Part 204 - Outer diameter: approx. 15.5 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 4 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€3.44*
Tip
NYY-J Erdkabel für unterirdische Stromversorgung
NYY-J 5x6 mm² underground cable by the metre
NYY-J 5x6 mm² underground cable by the metre to DIN VDE 0250 Part 204- Outer diameter: approx. 17 mm - Conductor material: Cu, bare- Conductor class: Class 1 (solid) - Number of cores: 5 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 6 mm² - Sheath colour: black- Flame retardancy: according to VDE 0482-332-1-2 - Permissible external cable temperature permanently installed: -40 - +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: U0/U 300/500 V - Test voltage: 2 kV

€4.76*
Tip
Underground cable NYY-J 1x10 mm² 100m
Underground cable NYY-J 1x10 mm² 100m
- 100m ring NYY-J 1x10 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.7 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: approx. 10 mm²- Sheath colour: black- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 100 Meter (€1.64* / 1 Meter)

€164.21*
Details
Underground cable NYY-J 1x10 mm² by the metre
Underground cable NYY-J 1x10 mm² by the metre
NYY-J 1x10 mm² underground cable by the metre to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.7 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: approx. 10 mm²- Sheath colour: black- Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

€1.69*
Tip

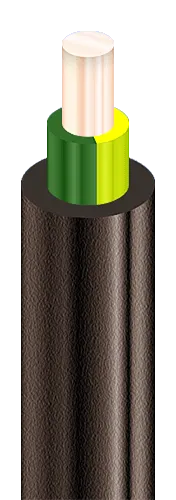

Underground cable NYY-J 1x16 mm² black 100m
Underground cable NYY-J 1x16 mm² black 100m
- 100m ring NYY-J 1x16 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 100 Meter (€2.57* / 1 Meter)

€257.25*

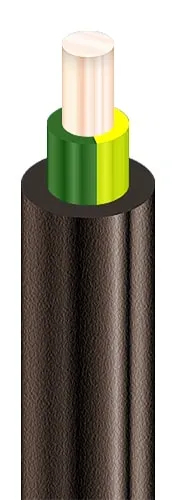

erdkabel nyy 1x16
Underground cable NYY-J 1x16 mm² black 10m
- 10m ring NYY-J 1x16 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9.7 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 10 Meter (€2.57* / 1 Meter)

€25.73*
erdkabel nyy 1x16
Underground cable NYY-J 1x16 mm² black 25m
- 25m ring NYY-J 1x16 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 9 mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature in fixed installation: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 25 Meter (€2.57* / 1 Meter)

€64.32*
erdkabel nyy 1x16
Underground cable NYY-J 1x16 mm² black 50m
- 50m ring NYY-J 1x16 PVC power cable to DIN VDE 0279 Part 603 - Conductor material: CU, bare - Outer diameter: approx. 10mm- Conductor class: class 1 (solid) - Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70°C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

Content: 50 Meter (€2.57* / 1 Meter)

€128.63*
erdkabel nyy 1x16
Underground cable NYY-J 1x16 mm² RE by the metre
NYY-J 1x16 mm² underground cable by the metre according to DIN - Conductor material: CU, bare - Outer diameter: approx. 16 mm- Conductor class: class 1 (solid)- Number of cores: 1 - Core labelling: according to VDE 0293 - Conductor nominal cross-section: 16 mm² - Sheath colour: black - Flame retardancy: according to VDE 0482-332-1-2/IEC 60332-1 - Permissible operating temperature: at conductor 70°C - Permissible external cable temperature permanently installed: +70 °C - Permissible external cable temperature in motion: -5 - +70 °C - Rated voltage: u0/u 0.6/1 kV - Test voltage: 4 kV

€2.57*

5% Rabatt für Bestellungen ab 500 €

Abonnieren Sie den Newsletter, um den Code zu erhalten.

Kostenloser Versand nach Deutschland

für Bestellungen über 500 € ohne Spedition
und für alle Bestellungen über 1000 €

Erdkabel NYY-J Starkstromkabel Set

NYY-J underground power cables

NYY underground cables, also known as power cables, are specially designed for laying below the surface. These cables, namely NYY-J and NYY-O power cables, are ideal for underground applications.
