Cat7 DATALINE1000 Outdoor underground cable STP 4X2XAWG23 PIMF PE SW
€1.96*
Available, delivery time: 2-5 Tage (Paket oder Speditionsversand)
Product number:
101008
Product information "Cat7 DATALINE1000 Outdoor underground cable STP 4X2XAWG23 PIMF PE SW"

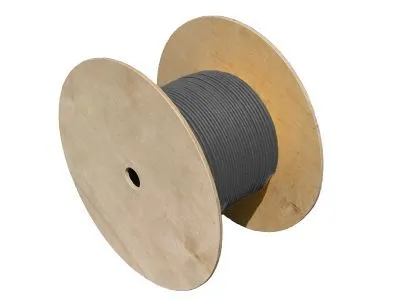

Faber® DL 1000 Cat.7 STP 4X2XAWG23 PIMF FRNC reel
Specification/standard: IEC 61156-5, EN 50173-1
Conductor material: Cu, bare
Core insulation: Cellular PE
Shield over stranding element: Foil
Shield over stranding: Cu braid, tinned
Sheath material: Polyethylene
Sheath colour: black
UV-resistant: yes
Permissible external cable temperature, permanently installed: -30 - +60 °C
Permissible external cable temperature, in motion: 0 - 50 °C
Min. bending radius, fixed installation: 4 x Ø
Bending radius, moving: 8 x Ø
Characteristic impedance: 100 Ohm
Shortening factor (NVP value): 0.78 v/c
Category: 7+
Conductor diameter: 0.56 mm
Conductor resistance: 75 Ohm/km
Outer diameter approx.: 7.70 mm
Tensile strength (laying): 110 N
Copper count (de): 36
Metal base Cu (de): 100 EUR/100 kg
Net weight per 1000: 49 kg
Unit of measurement: metre
Can be buried: yes
Cable shape (cross-section): round
Halogen-free: no
Oil-resistant: no
Conductor class: Class 1 = solid
Note: By the metre! No cutting costs! Customised products cannot be exchanged or returned.
Specification/standard: IEC 61156-5, EN 50173-1
Conductor material: Cu, bare
Core insulation: Cellular PE
Shield over stranding element: Foil
Shield over stranding: Cu braid, tinned
Sheath material: Polyethylene
Sheath colour: black
UV-resistant: yes
Permissible external cable temperature, permanently installed: -30 - +60 °C
Permissible external cable temperature, in motion: 0 - 50 °C
Min. bending radius, fixed installation: 4 x Ø
Bending radius, moving: 8 x Ø
Characteristic impedance: 100 Ohm
Shortening factor (NVP value): 0.78 v/c
Category: 7+
Conductor diameter: 0.56 mm
Conductor resistance: 75 Ohm/km
Outer diameter approx.: 7.70 mm
Tensile strength (laying): 110 N
Copper count (de): 36
Metal base Cu (de): 100 EUR/100 kg
Net weight per 1000: 49 kg
Unit of measurement: metre
Can be buried: yes
Cable shape (cross-section): round
Halogen-free: no
Oil-resistant: no
Conductor class: Class 1 = solid
Note: By the metre! No cutting costs! Customised products cannot be exchanged or returned.
WARN- UND SICHERHEITSHINWEISE:
Der Anschluss und die Installation eines elektrischen Geräts oder Bauteils, das nicht steckerfertig ist, dürfen ausschließlich von einer qualifizierten Elektrofachkraft vorgenommen werden. Bei Schäden ist das Kabel unverzüglich spannungsfrei zu schalten. Der Hersteller übernimmt keine Haftung für Schäden, die durch unsachgemäßen Gebrauch verursacht werden. Weitere Informationen zum Installationshinweis finden Sie hier.
